Gantry robot, single-beam truss-type feeding device, usually called gantry palletizer or linear robots, improves production and processing efficiency, and is suitable for batch plate processing. this product has a high degree of automation, simple and reliable structure, and can be unattended. widely used in sheet metal processing, kitchen utensils, advertising production, hardware products and other industries.
1. Does not affect crane or forklift operations, has large load capacity, fast speed and high efficiency;

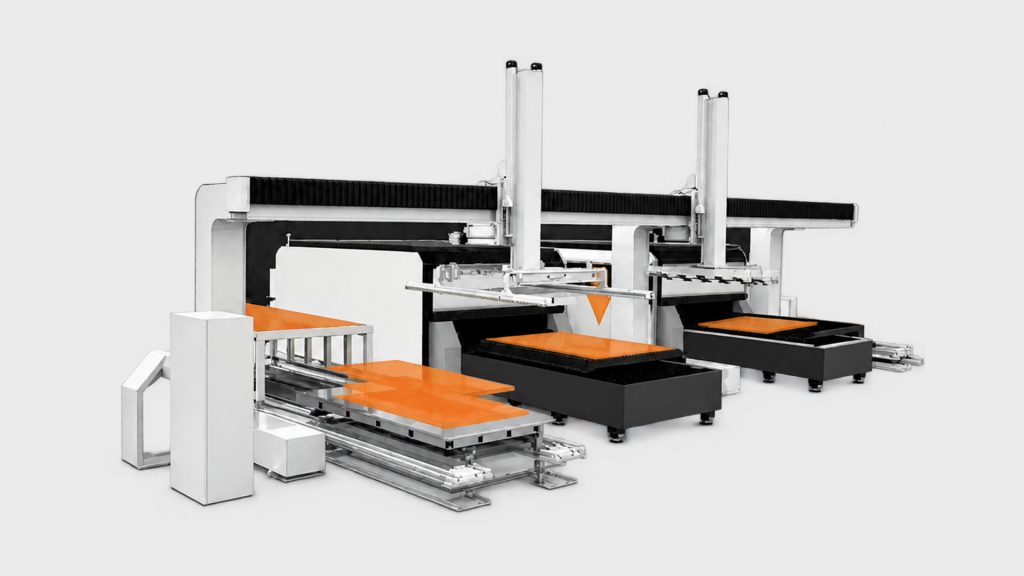

2. It can be combined with a plate laser cutting machine and a tower silo to realize automatic storage, loading and unloading of metal plates;
3. Equipped with parallel cylinders, the wear on transmission components is smaller and the service life of the equipment is increased;
Flexible production efficiency first

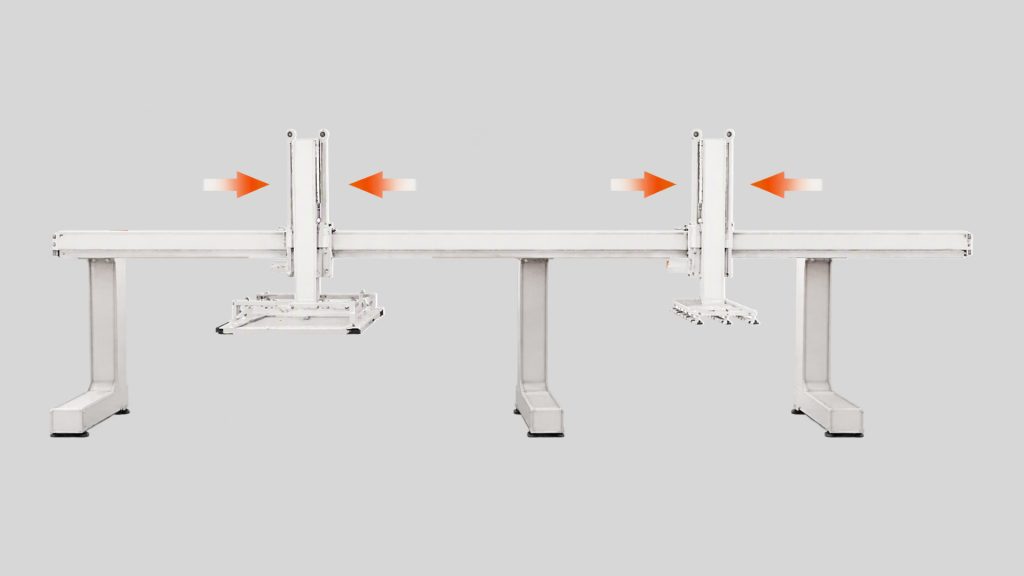

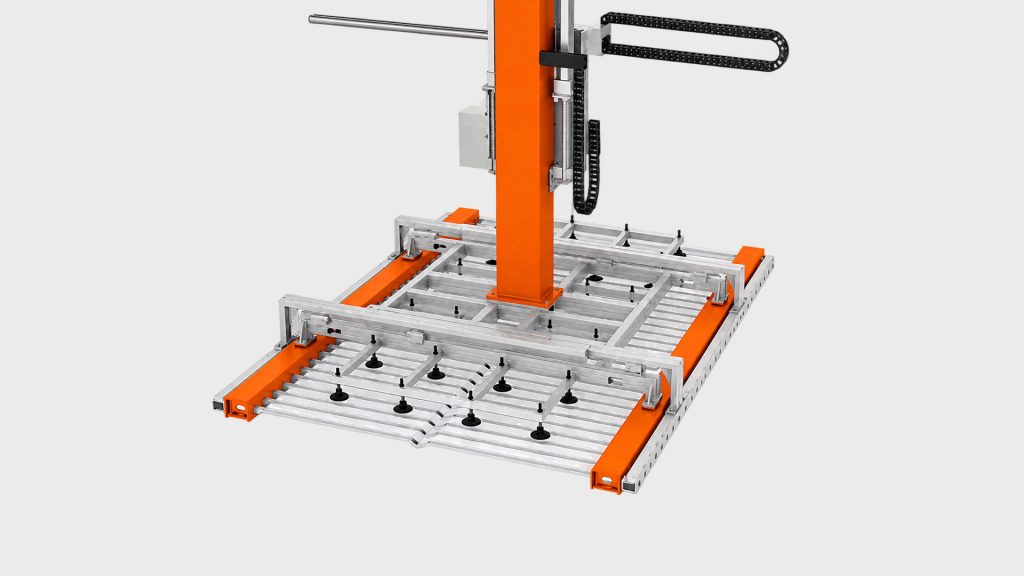

The self-developed new frame structure can be equipped with a double-suction cup or multi-suction cup unloading rack. the main beam adopts slider guide rail transmission to meet the synchronous production of the entire production line and realize unmanned operation to the greatest extent.
Self-developed new type of bridge structure, sucker-type material rack, the main cross-beam slide guide-type transmission, to meet the full line of synchronous production, to achieve the maximum degree of unmanned operation.
| Compatible models | 3000*1500mm—4000*2000mm |
| Minimum feeding size | 500*500mm |
| Working voltage | 220V 50HZ/60HZ |
| Positioning accuracy | ±2.5mm |
| Speed of operation | 35m/min |
| Maximum load bearing | 800kg |
