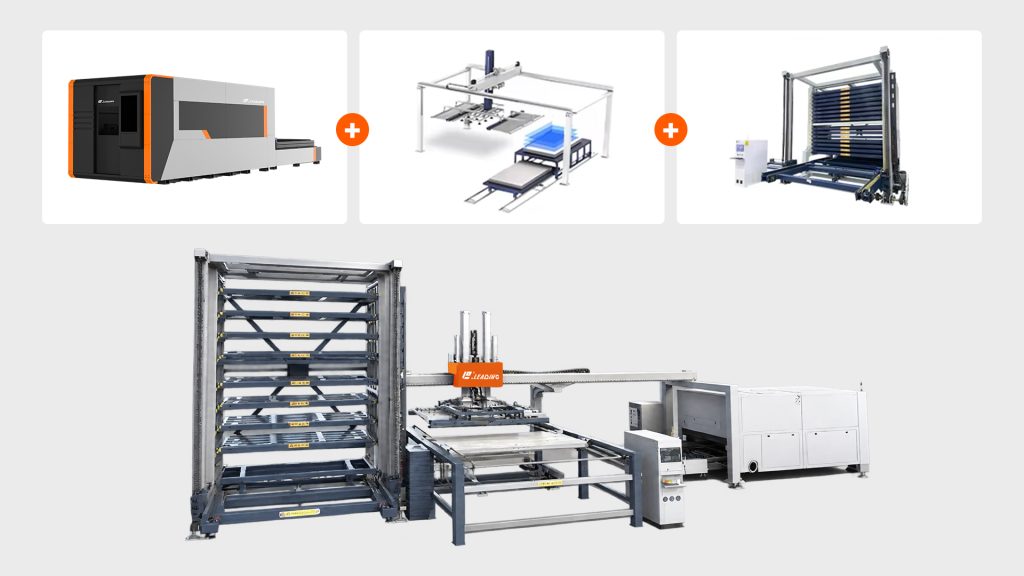

When a laser cutting machine is combined with an automated loading and unloading system and a three-dimensional storage system, it can form a highly integrated, high-efficiency and low-labor-cost intelligent sheet metal production line.

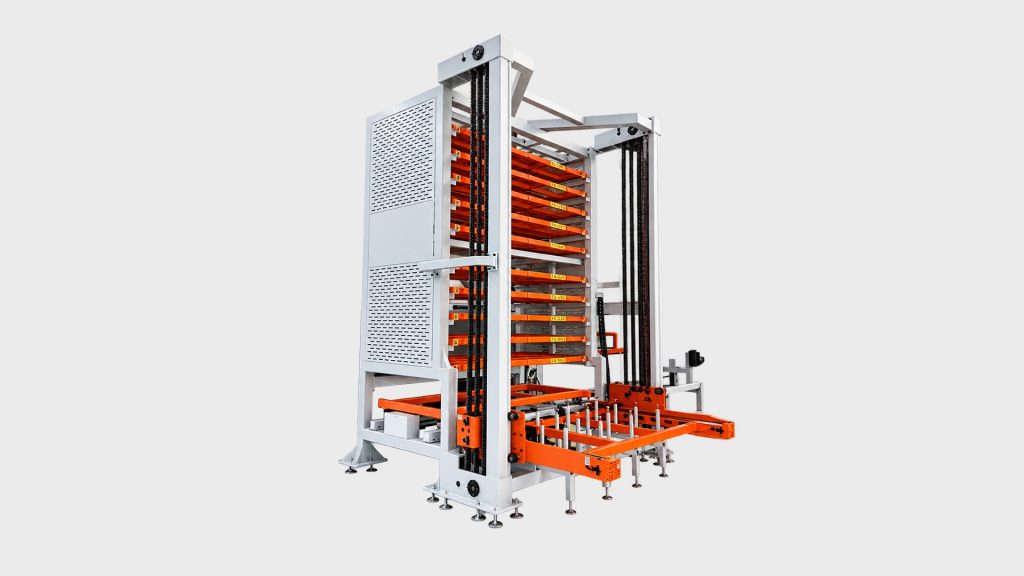

Integrated Solution: Combines automated storage and retrieval. Automated Loading and Unloading, Effortlessly manages sheet metal storage.

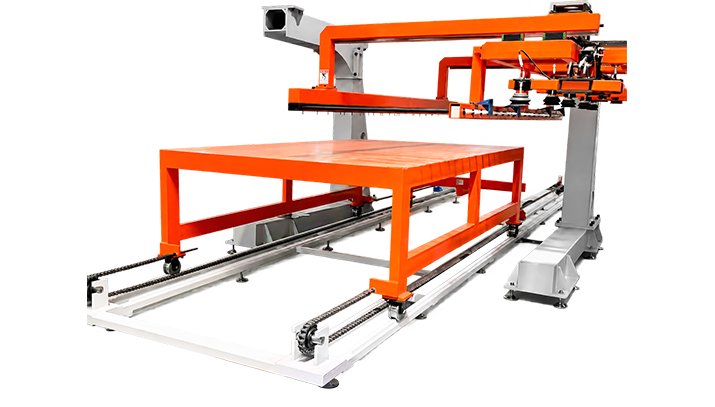

Robotic Handling: Operates autonomously for unmanned factory operations.

Durable Design: Built for long-term use with robust construction.

Working area3000*1500mm
Machine overall dimensions11000*2850*2260mm
Overall weight6500kg
GuiderailTHK/PEK/HIWIN
Laser headRaytools/Precitec
Laser sourceIPG/Raycus/MAX
Servo motor and driveYASKAWA/FUJ
Control systemSypcut/WEIHONG
Max linkage speed100m/min
Max acceleration1.5G
Positioning accuracy0.03mm
Pepositioning accuracy0.02mm
laser power1KW-6KW
Power supply380V 50Hz/60Hz/60A
