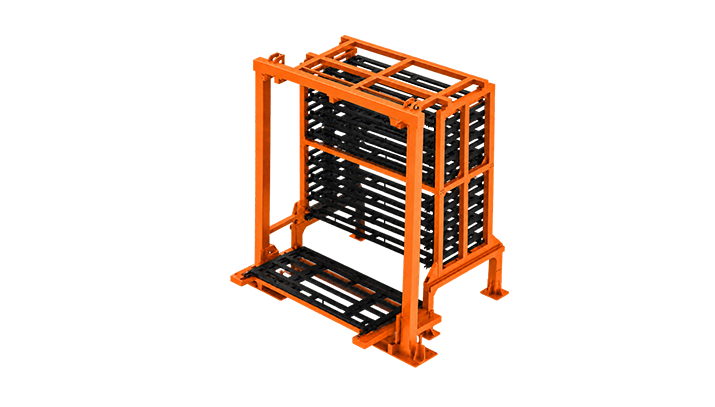

Multi-layer three-dimensional warehouse unit design, the overall structure is compact and centralized, improving the utilization rate of unit production area.
Workpiece access, loading, unloading, handling, fully automatic standardized operation, simplified process, flexible and efficient.
In-depth docking with mes system, reasonably arrange production plan, improve the utilization rate of laser cutting equipment, and reduce standby cost.

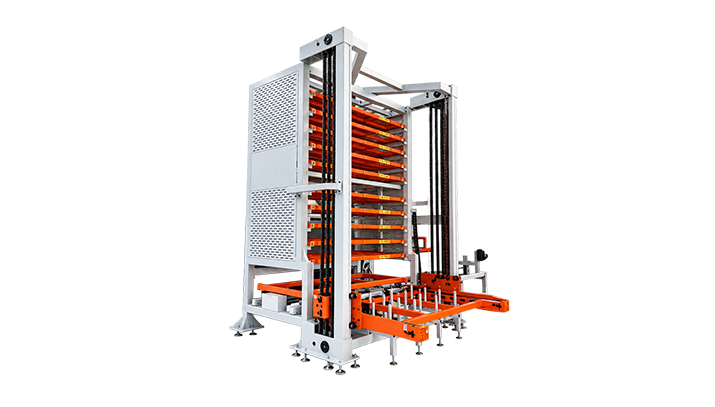

1. Can be equipped with a lifting system, robotic arm, and control software to achieve sheet metal storage and conveying.
2. Enables automatic loading and unloading of laser cutting machines and shearing centers.
3. Makes efficient use of space and improves space utilization.
4. Supports categorized management to improve work efficiency.

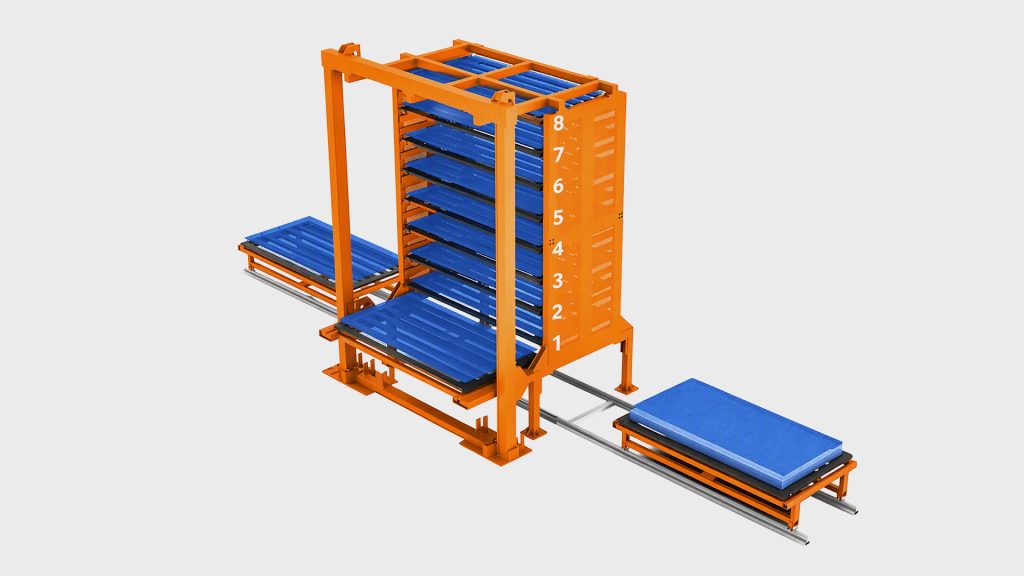

The number of unit layers is customizable based on customers’ actual requirements.

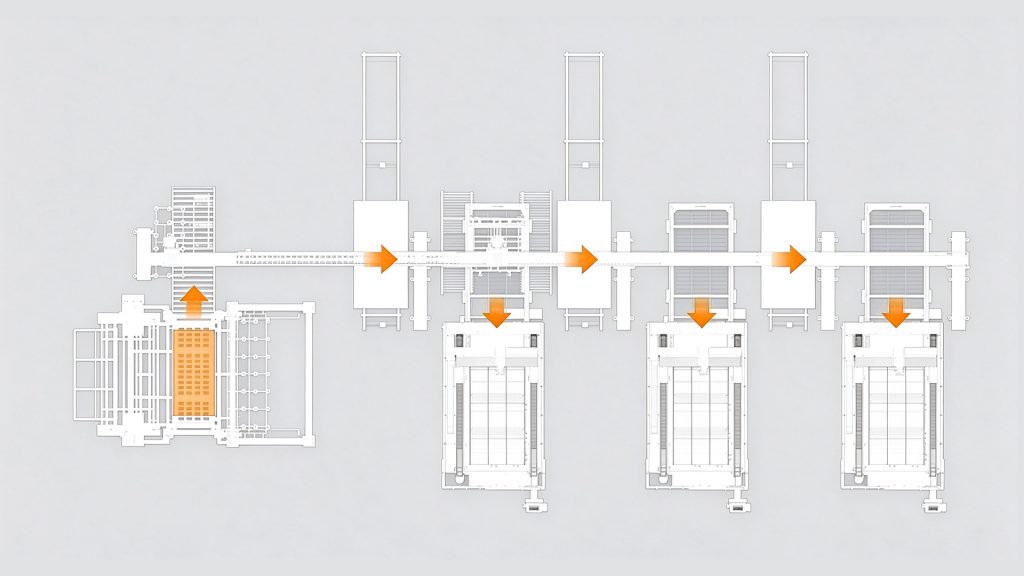

Automatic Processing & Scientific Production
According to the production plan, the production is automatically arranged, and the unmanned cutting operation cycle is supported. Save labor while reducing manual errors.
| Maximum feeding size | 6000*2000mm |
| Minimum feeding size | 800*800mm |
| Single layer weight | 4000kg |
| Single layer payload | 3000kg |
| Storage layers | ≤12 floors(can be customized) |
| Working Voltage | 220V/380V 50HZ/60HZ |
